SUT-450C Parts

Our Products: Parts > SUT-450C Parts

SUT-450C Parts

Specify a quantity for any of the products listed on this page, then click 'Add to Cart' to add them to your shopping cart. If the quantity field is not visible for a product, you must click on the 'More Details' button and select the options or fill out the fields that require your input.

Drawing No.

Qty

SKU

Description

Price

3/8-16 x 3/4 T-BOLTS (PACKAGE OF 15)

8-100PKG15 (450C)

3/8-16 x 3/4 T-BOLTS (PACKAGE OF 15)

$9.00

3/8-16 x 3/4 REPAIR T-BOLTS (PACKAGE OF 15)

8-103PKG15 (450C)

3/8-16 x 3/4 REPAIR T-BOLTS (PACKAGE OF 15)

$8.00

3/8-16 LARGE FLANGE NYLON INSERT HEX LOCK NUTS 7/8" FLANGE (MAGNI 17) (PACKAGE of 15)

8-401NYPKG15 (450C)

3/8-16 LARGE FLANGE NYLON INSERT HEX LOCK NUTS 7/8" FLANGE (MAGNI 17) (PACKAGE of 15)

$8.00

1

1 7/8" COUPLER FOR 2 1/2" WIDE TONGUE, 2000 LB CAPACITY

4-100 (450C)

1 7/8" COUPLER FOR 2 1/2" WIDE TONGUE, 2000 LB CAPACITY

$18.00

2

CLASS I SAFETY HITCH CABLE, 2800# BREAK STRENGTH, 36" OAL WITH BLACK VINYL COVER (SET OF 2)

4-601D (450C)

CLASS I SAFETY HITCH CABLE, 2800# BREAK STRENGTH, 36" OAL WITH BLACK VINYL COVER (SET OF 2)

$18.00

3

3/8-16 x 3/4" REPAIR T BOLT - 1/2 SLAB

8-103 (450C)

3/8-16 x 3/4" REPAIR T BOLT - 1/2 SLAB

$0.60

4

1/2" FLAT WASHER (ZINC)

8-452 (450C)

1/2" FLAT WASHER (ZINC)

$0.18

5

3/8-16 X 1 1/8" T BOLT

8-104 (450C)

3/8-16 X 1 1/8" T BOLT

$0.70

6

3/8 - 16 LARGE FLANGE NYLON INSERT HEX LOCK NUT

8-401NY (450C)

3/8 - 16 LARGE FLANGE NYLON INSERT HEX LOCK NUT

$0.60

7

3/8-16 x 3 1/4" GRADE 5 BOLT

8-308 (450C)

3/8-16 x 3 1/4" GRADE 5 BOLT

$0.35

8

1/4 X 1 1/8 X 15" SKID

1-2604A (450C)

1/4 X 1 1/8 X 15" SKID

$15.00

9A

TX-201 FRONT TONGUE SECTION 79"

TX-201NF (450C)

TX-201 FRONT TONGUE SECTION 79"

$104.28

9B

TX-201 REAR TONGUE SECTION 65"

TX-201NF (450C)

TX-201 REAR TONGUE SECTION 65"

$85.80

10

TX-10 CROSSARMS 75"

TX-10NF (450C)

TX-10 CROSSARMS 75"

$83.25

11

TX-1011NF CROSSARMS - 74"

1-437 (450C)

TX-1011NF CROSSARMS - 74"

$72.52

12

1/4 X 4 X 10" (NF) SIDE SPLICE PLATE

1-3330A (450C)

1/4 X 4 X 10" (NF) SIDE SPLICE PLATE

$12.00

13

1/4 X 3 X 10" (NF) BOTTOM SPLICE PLATE

1-3085A (450C)

1/4 X 3 X 10" (NF) BOTTOM SPLICE PLATE

$10.00

14

3/16 X 1 3/8 X 1 5/8 L X 6" (NF) ANGLE CROSSARM TO SIDERAIL AND TONGUE

1-3631 (450C) (PAIR)

3/16 X 1 3/8 X 1 5/8 L X 6" (NF) ANGLE CROSSARM TO SIDERAIL AND TONGUE

$16.00

15

TX-4 SUB RAIL CLIP 4 1/8" (ANODIZED) LEFT/ RIGHT SAME

1-600 (450C)

TX-4 SUB RAIL CLIP 4 1/8" (ANODIZED) LEFT/ RIGHT SAME

$12.25

16F

1/4 X 2 X 4 3/4 SUB RAIL REINFORCING BRACKET FRONT

1-2956B (450C)

1/4 X 2 X 4 3/4 SUB RAIL REINFORCING BRACKET FRONT

$5.50

16R

1/4 X 2 X 4 3/4" (ANODIZED) SUB RAIL REINFORCING BRACKET REAR W/ 3/8" HOLES BOTH ENDS, REAR

1-2956D (450C)

1/4 X 2 X 4 3/4" (ANODIZED) SUB RAIL REINFORCING BRACKET REAR W/ 3/8" HOLES BOTH ENDS, REAR

$5.50

17

6" CENTER ROLL COMPLETE WITH 1/4 X 1 1/8 X 4 1/4" ANGLE BRACKETS BOLTS AND NUTS

4-983 (450C)

6" CENTER ROLL COMPLETE WITH 1/4 X 1 1/8 X 4 1/4" ANGLE BRACKETS BOLTS AND NUTS

$24.00

18

2 X 4 X 7 1/2" PADDED CRADLE WITH PIVOT PLATE

10-176 (450C)

2 X 4 X 7 1/2" PADDED CRADLE WITH PIVOT PLATE

$15.00

18A

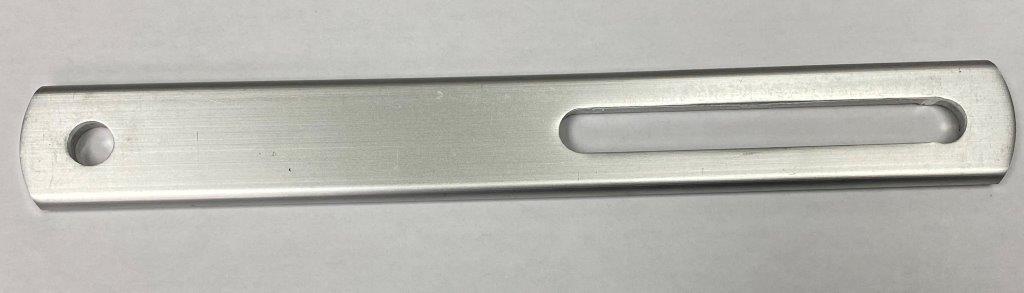

1/4 X 1 1/8 X 8 3/4" SLOTTED UPRIGHT BRACKET

1-2606 (450C)

1/4 X 1 1/8 X 8 3/4" SLOTTED UPRIGHT BRACKET

$7.00

19A

VINYL BUMPER 13" 1 PCS

4-957 (450C)

VINYL BUMPER 13" 1 PCS

$2.16

19B

#10-24 X 1" THIN WAFER HEAD TEK 3 (ZINC)

1024100TW (450C)

#10-24 X 1" THIN WAFER HEAD TEK 3 (ZINC)

$0.15

20

0.100 x 1" x 2" L x 4" ANGLE for LED AMBER MARKER LIGHT (ANODIZED)

1-3416A (450C)

0.100 x 1" x 2" L x 4" ANGLE for LED AMBER MARKER LIGHT (ANODIZED)

$12.00

21

AMBER MARKER CLEARANCE LIGHT WITH REFLECTOR

4-263C (450C)

AMBER MARKER CLEARANCE LIGHT WITH REFLECTOR

$8.00

22

1/4 X 2 X 6 1/2" TAIL LIGHT BRACKET

1-2905A (450C)

1/4 X 2 X 6 1/2" TAIL LIGHT BRACKET

$8.50

23

LED TAIL LIGHT (RIGHT SIDE / PASSENGER SIDE)

4-261C (450C)

LED TAIL LIGHT (RIGHT SIDE / PASSENGER SIDE)

$18.00

24

LED TAIL LIGHT (LEFT SIDE/DRIVERS SIDE)

4-262C (450C)

LED TAIL LIGHT (LEFT SIDE/DRIVERS SIDE)

$20.00

25

LICENSE PLATE BRACKET - BLACK PLASTIC

4-308 (450C)

LICENSE PLATE BRACKET - BLACK PLASTIC

$3.00

26A

WEB STRAP TIE DOWN CLIP

4-806 (450C)

WEB STRAP TIE DOWN CLIP

$5.00

26B

FOUR WEB STRAP CLIPS

FWSC (450C)

FOUR WEB STRAP CLIPS

$18.00

27

3/8-16 X 3/4" T BOLT

8-100 (450C)

3/8-16 X 3/4" T BOLT

$0.55

28A

SMALL PLASTIC FENDER COMPLETE WITH BOLTS, NUTS, WASHERS

1-3910K (450C)

SMALL PLASTIC FENDER COMPLETE WITH BOLTS, NUTS, WASHERS

$24.99

28B

SMALL PLASTIC FENDER SILVER DRILLED

1-3910PD (450C)

SMALL PLASTIC FENDER SILVER DRILLED

$19.99

29

3/8 ID X 2" OD 1/8" THICK LARGE NEOPRENE WASHER

4-1002 (450C)

3/8 ID X 2" OD 1/8" THICK LARGE NEOPRENE WASHER

$0.60

30

SPECIAL FENDER WASHER 1/2" ID X 2" OD 16 GAGE (ZINC)

8-453 (450C)

SPECIAL FENDER WASHER 1/2" ID X 2" OD 16 GAGE (ZINC)

$0.30

30A

3/8 - 16 LARGE FLANGE NYLON INSERT HEX LOCK NUT

8-401NY (450C)

3/8 - 16 LARGE FLANGE NYLON INSERT HEX LOCK NUT

$0.60

31

1 3/4" OD X .188 WALL 2000# CAPACITY AXLE

2-300GH (450C)

1 3/4" OD X .188 WALL 2000# CAPACITY AXLE

$260.00

32

U-BOLT KIT COMPLETE U-BOLTS, NUTS AND TIE PLATES

8-506B (450C)

U-BOLT KIT COMPLETE U-BOLTS, NUTS AND TIE PLATES

$18.00

33

2 LEAF SPRING COMPLETE WITH SHACKLE HOLDER,SHACKLE,BUSHING,BOLTS AND NUTS

6-210A (450C)

2 LEAF SPRING COMPLETE WITH SHACKLE HOLDER,SHACKLE,BUSHING,BOLTS AND NUTS

$67.00

35

SPRING SHACKLE HOLDER WITH ( 2 ) 9/16 " NYLON BUSHINGS, INCLUDE (2) 8-304 AND (2) 8-401NY

1-2300A (450C)

SPRING SHACKLE HOLDER WITH ( 2 ) 9/16 " NYLON BUSHINGS, INCLUDE (2) 8-304 AND (2) 8-401NY

$17.80

36

SPRING SHACKLE HOLDER COMPLETE WITH SHACKLE, BUSHINGS, BOLTS, AND NUTS

1-2302A (450C)

SPRING SHACKLE HOLDER COMPLETE WITH SHACKLE, BUSHINGS, BOLTS, AND NUTS

$31.00

37

1/2 - 13 X 3" (GRADE 5) BOLT

8-352 (450C)

1/2 - 13 X 3" (GRADE 5) BOLT

$0.60

41

4 STUD HUB COMPLETE WITH BEARINGS, SEALS, DUST CAP, WHEEL NUTS, AND GREASE.

4-420C (450C)

4 STUD HUB COMPLETE WITH BEARINGS, SEALS, DUST CAP, WHEEL NUTS, AND GREASE.

$46.00

44

DUST CAP

4-408T (450C)

DUST CAP

$5.00

45A

4.80 X 8" C LOAD RANGE TIRE AND GALVANIZED WHEEL, 4" BOLT CIRCLE ON 4 HOLE WHEEL 590# CAP

5-137G (450C)

4.80 X 8" C LOAD RANGE TIRE AND GALVANIZED WHEEL, 4" BOLT CIRCLE ON 4 HOLE WHEEL 590# CAP

$50.00

47

SPARE TIRE CARRIER

5-215 (450C)

SPARE TIRE CARRIER

$54.00

48

1/2 - 20 CONE NUT 60 DEGREE TAPER

4-406 (450C)

1/2 - 20 CONE NUT 60 DEGREE TAPER

$1.00

48" FRONT MAST STAND WITHOUT WINCH

WP48SBMOPT-W (450C)

48" FRONT MAST STAND WITHOUT WINCH

$149.00

48" FRONT MAST STAND, INCLUDES 1500# WINCH

WP48SBMOPT (450C)

48" FRONT MAST STAND, INCLUDES 1500# WINCH

$202.00

60" FRONT MAST STAND WITHOUT WINCH

WP60SBMOPT-W (450C)

60" FRONT MAST STAND WITHOUT WINCH

$151.00

60" FRONT MAST STAND INCLUDES 1500# WINCH

WP60SBMOPT (450C)

60" FRONT MAST STAND INCLUDES 1500# WINCH

$232.00

ADJUSTABLE FRONT PARKING JACK

4-517D (450C)

ADJUSTABLE FRONT PARKING JACK

$98.00
