    CT-7031 Parts

    Our Products: Parts > CT-7031 Parts
    CT-7031 Parts

    Specify a quantity for any of the products listed on this page, then click 'Add to Cart' to add them to your shopping cart. If the quantity field is not visible for a product, you must click on the 'More Details' button and select the options or fill out the fields that require your input.

    Drawing No.
    Qty

    SKU
    Description
    Price

    3/8-16 x 3/4 T-BOLTS (PACKAGE OF 15)
    8-100PKG15 (7031)
    3/8-16 x 3/4 T-BOLTS (PACKAGE OF 15)
    $9.00

    3/8-16 x 3/4 REPAIR T-BOLTS (PACKAGE OF 15)
    8-103PKG15 (7031)
    3/8-16 x 3/4 REPAIR T-BOLTS (PACKAGE OF 15)
    $8.00

    3/8-16 x 1 1/8" T-BOLTS (PACKAGE of 15)
    8-104PKG15
    3/8-16 x 1 1/8" T-BOLTS (PACKAGE of 15)
    $10.00

    3/8-16 LARGE FLANGE NYLON INSERT HEX LOCK NUTS 7/8" FLANGE (MAGNI 17) (PACKAGE of 15)
    8-401NYPKG15 (7031)
    3/8-16 LARGE FLANGE NYLON INSERT HEX LOCK NUTS 7/8" FLANGE (MAGNI 17) (PACKAGE of 15)
    $8.00
    1
    2" 6000# COUPLER WITH 3" CHANNEL (ELECTRIC BRAKES)
    4-158 (CT7031)
    2" 6000# COUPLER WITH 3" CHANNEL (ELECTRIC BRAKES)
    $60.00
    1A
    2" BALL COUPLER COMPLETE SURGE BRAKE UNIT
    2-200 (7031)
    2" BALL COUPLER COMPLETE SURGE BRAKE UNIT
    $246.00
    2
    1/4 X 1 1/2 X 3 1/2 ANGLE X 5" (ANOD.) MODEL 60 TONGUE SPACER FOR COUPLER
    1-673 (7031)
    1/4 X 1 1/2 X 3 1/2 ANGLE X 5" (ANOD.) MODEL 60 TONGUE SPACER FOR COUPLER
    $11.00
    3
    CLASS III SAFETY HITCH CABLE 4900# (SET OF 2)
    4-601E (7031)
    CLASS III SAFETY HITCH CABLE 4900# (SET OF 2)
    $18.00
    7
    TX-222 TONGUE PER INCH (ANODIZED) - CUT @ 70"
    TX-222 (7031)
    TX-222 TONGUE PER INCH (ANODIZED) - CUT @ 70"
    $175.00
    9
    TX-1001 SIDE RAIL 48" (ANODIZED)
    TX-1001 (7031
    TX-1001 SIDE RAIL 48" (ANODIZED)
    $108.00
    11
    TX-95 (ANODIZED) - CUT @ 70"
    1-3788 (7031)
    TX-95 (ANODIZED) - CUT @ 70"
    $80.50
    12
    1/4 X 4 X 5" TONGUE TO TX-5
    1-3338 (7031)
    1/4 X 4 X 5" TONGUE TO TX-5
    $2.29
    13
    1/4 X 2 X 6 1/2" TONGUE TO CATWALK BRACE
    1-2905B (7031)
    1/4 X 2 X 6 1/2" TONGUE TO CATWALK BRACE
    $4.25
    14
    1/4 X 1 1/2 X 3 1/2 ANGLE X 6" - TONGUE JACK MT. PLATE
    1-7026 (7031)
    1/4 X 1 1/2 X 3 1/2 ANGLE X 6" - TONGUE JACK MT. PLATE
    $12.00
    15
    BREAKAWAY KIT WITH CHARGER
    12-218 (7031)
    BREAKAWAY KIT WITH CHARGER
    $49.00
    16
    SCREW JACK 1200# LIFT CAP 25"
    4-517B (7031)
    SCREW JACK 1200# LIFT CAP 25"
    $109.00
    17
    1/4 X 6 X 16 1/2" TOP APEX PLATE
    1-3572 (7031)
    1/4 X 6 X 16 1/2" TOP APEX PLATE
    $35.00
    18
    1/4 x 3 x 14" BOTTOM APEX PLATE
    1-3063 (7031)
    1/4 x 3 x 14" BOTTOM APEX PLATE
    $9.90
    19
    1/4 X 3 X 7" TONGUE TO SIDE RAIL BRACE - 45 DEGREES
    1-3059 (7031)
    1/4 X 3 X 7" TONGUE TO SIDE RAIL BRACE - 45 DEGREES
    $11.25
    20
    1/4 X 1 1/8 X 3 3/4" ANGLE BRACKET
    1-2663 (7031)
    1/4 X 1 1/8 X 3 3/4" ANGLE BRACKET
    $3.00
    21
    1/4 X 1 1/2 X 3 1/2 L X 3" ANODIZED FRONT CROSSMEMBER TO TONGUE
    1-7004 (7031)
    1/4 X 1 1/2 X 3 1/2 L X 3" ANODIZED FRONT CROSSMEMBER TO TONGUE
    $3.20
    22
    1/4 X 1 1/8 X 11 1/2" UNDER TX-5 TO CROSSMEMBER
    1-2694 (7031)
    1/4 X 1 1/8 X 11 1/2" UNDER TX-5 TO CROSSMEMBER
    $12.00
    23
    TX-5 12 1/2" FRONT CT TIE DOWN BRACKET W/RECESSED D RING (DRIVER SIDE)
    1-734D (7031)
    TX-5 12 1/2" FRONT CT TIE DOWN BRACKET W/RECESSED D RING (DRIVER SIDE)
    $74.00
    24
    TX-5 12 1/2" FRONT CT TIE DOWN BRACKET W/RECESSED D RING (PASSENGER SIDE)
    1-734P (7031)
    TX-5 12 1/2" FRONT CT TIE DOWN BRACKET W/RECESSED D RING (PASSENGER SIDE)
    $74.00
    25
    1/4 X 3 X 7" TOP & BOTTOM ELBOW PLATE 45 DEGREES TX-1001 (ANODIZED)
    1-3058 (7031)
    1/4 X 3 X 7" TOP & BOTTOM ELBOW PLATE 45 DEGREES TX-1001 (ANODIZED)
    $6.60
    26
    3/16 X 5 X 8" SIDE RAIL ELBOW PLATE 45 DEGREE (CT) (ANODIZED)
    1-3202 (7031)
    3/16 X 5 X 8" SIDE RAIL ELBOW PLATE 45 DEGREE (CT) (ANODIZED)
    $9.30
    27
    1/4 X 3 X 10 1/2" INSIDE ELBOW PLATE
    1-3082A (7031)
    1/4 X 3 X 10 1/2" INSIDE ELBOW PLATE
    $9.00
    28
    1/4 X 2 X 2 X 15 3/4" CATWALK ATTACH ANGLE
    1-3840 (7031)
    1/4 X 2 X 2 X 15 3/4" CATWALK ATTACH ANGLE
    $16.00
    29
    .100 X 1 X 2 ANGLE X 13" SIDE MARKER LIGHT BRKT LEFT SIDE FOR VIN TAG
    1-3401 (7031)
    .100 X 1 X 2 ANGLE X 13" SIDE MARKER LIGHT BRKT LEFT SIDE FOR VIN TAG
    $14.00
    30
    .100 X 1 X 2 ANGLE X 4" ANGLE FOR CLEARANCE LIGHT R/T SIDE
    1-3416 (7031)
    .100 X 1 X 2 ANGLE X 4" ANGLE FOR CLEARANCE LIGHT R/T SIDE
    $9.45
    31
    1/4 X 2 X 2 L X 2 3/8" (ANODIZED) CROSSMEMBER ATTACH ANGLE
    1-3842 (7031)
    1/4 X 2 X 2 L X 2 3/8" (ANODIZED) CROSSMEMBER ATTACH ANGLE
    $8.00
    32
    1X4 X 1 1/2 X 3 1/2 ANGLE X 3 1/2" ANOD. RAMP STOP
    1-696 (7031)
    1X4 X 1 1/2 X 3 1/2 ANGLE X 3 1/2" ANOD. RAMP STOP
    $11.00
    33
    1/4 X 2 X 2 ANGLE X 2 1/4" TENSION ROLL ASSEMBLY
    1-3802 (7031)
    1/4 X 2 X 2 ANGLE X 2 1/4" TENSION ROLL ASSEMBLY
    $19.00
    34A
    TX-94 UNDER BED LOAD RAMP HANGER ASSEMBLY INCLUDES POLY GUIDE
    10-001 (7031)
    TX-94 UNDER BED LOAD RAMP HANGER ASSEMBLY INCLUDES POLY GUIDE
    $477.00
    34B
    UNDER BED LOAD RAMP POLY GLIDE
    4-1276A (7031)
    UNDER BED LOAD RAMP POLY GLIDE
    $36.00
    34C
    SS LOCKNUT FOR RAMP POLY GLIDES
    8-416NY (7031)
    SS LOCKNUT FOR RAMP POLY GLIDES
    $0.12
    34D
    SS BOLT FOR RAMP POLY GLIDES
    8750FHSS (7031)
    SS BOLT FOR RAMP POLY GLIDES
    $0.10
    35
    LOCKABLE LOAD RAMP DOOR ASSEMBLY
    10-002 (7031)
    LOCKABLE LOAD RAMP DOOR ASSEMBLY
    $75.00
    36
    1/4 X 3 X 3 5/8" LOCK PLATE - REAR CROSSMEMBER (ANODIZED)
    1-3081 (7031)
    1/4 X 3 X 3 5/8" LOCK PLATE - REAR CROSSMEMBER (ANODIZED)
    $5.00
    41
    RECESSED FLOOR TIE DOWN RING
    RDR5M (7031)
    RECESSED FLOOR TIE DOWN RING
    $10.00
    42
    TX-10 (ANOD.) PER INCH / CUT @ 16 1/2"
    TX-10 (7031)
    TX-10 (ANOD.) PER INCH / CUT @ 16 1/2"
    $24.75
    43
    1/4 X 1 1/2 X 3 1/2 ANGLE X 1 1/4" WHEEL STOP ANGLE L/H
    1-674L (7031)
    1/4 X 1 1/2 X 3 1/2 ANGLE X 1 1/4" WHEEL STOP ANGLE L/H
    $12.00
    43A
    1/4 X 1 1/2 X 3 1/2 ANGLE 1 1/4" WHEEL STOP ANGLE R/H
    1-674R (7031)
    1/4 X 1 1/2 X 3 1/2 ANGLE 1 1/4" WHEEL STOP ANGLE R/H
    $12.00
    44
    3/16 X 1 3/8 X 1 5/8 L WHEEL STOP ANGLE 2 3/4" (ANODIZED)
    1-3637 (7031)
    3/16 X 1 3/8 X 1 5/8 L WHEEL STOP ANGLE 2 3/4" (ANODIZED)
    $9.00
    45
    1/4 X 2 X 2 L X 4 3/4" (ANODIZED) REAR RAMP HOOK HANGER
    1-3843 (7031)
    1/4 X 2 X 2 L X 4 3/4" (ANODIZED) REAR RAMP HOOK HANGER
    $9.00
    47
    1.237 OD X 2 3/8" REAR ID SPACER
    3-203 (7031)
    1.237 OD X 2 3/8" REAR ID SPACER
    $2.50
    48

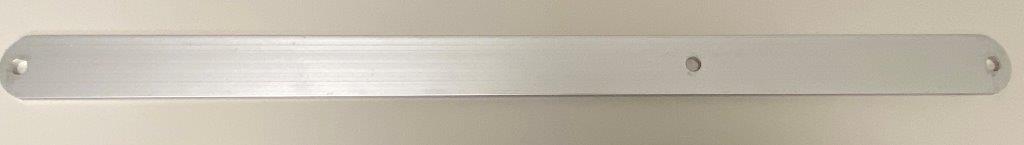

    1/4 X 2 X 29 3/4" REAR LOAD RAMP BAR (ANODIZED)
    1-3030 (7031)
    1/4 X 2 X 29 3/4" REAR LOAD RAMP BAR (ANODIZED)
    $73.00
    49
    CAR TRAILER TAIL LIGHT BRACKET W/A - L/H
    1-2041LA (7031)
    CAR TRAILER TAIL LIGHT BRACKET W/A - L/H
    $36.00
    50
    CAR TRAILER TAIL LIGHT BRACKET W/A - R/H
    1-2041RA (7031)
    CAR TRAILER TAIL LIGHT BRACKET W/A - R/H
    $36.00
    51
    LED STOP AND TAIL LIGHT L/H
    4-357 (7031)
    LED STOP AND TAIL LIGHT L/H
    $43.00
    52
    LED STOP AND TAIL LIGHT R/H
    4-356 (7031)
    LED STOP AND TAIL LIGHT R/H
    $43.00
    53
    LED 3 LIGHT BAR
    4-345 (7031)
    LED 3 LIGHT BAR
    $24.00
    54
    LED CLEARANCE / SIDE MARKER LIGHT - AMBER
    4-263C (7031)
    LED CLEARANCE / SIDE MARKER LIGHT - AMBER
    $15.00
    55
    LICENSE PLATE BRACKET - BLACK PLASTIC
    4-308 (7031)
    LICENSE PLATE BRACKET - BLACK PLASTIC
    $3.00
    56
    LARGE TANDEM FENDEX FENDER FOR 13" or 14" WHEELS , 69" LONG (ANODIZED) - 11 1/2" LEGS / 46"SPAN
    1-3923FX (7031)
    LARGE TANDEM FENDEX FENDER FOR 13" or 14" WHEELS , 69" LONG (ANODIZED) - 11 1/2" LEGS / 46"SPAN
    $170.00
    57
    LED CLEARANCE LIGHT FOR FENDER -AMBER
    4-358 (7031)
    LED CLEARANCE LIGHT FOR FENDER -AMBER
    $9.00
    58
    LED CLEARANCE LIGHT FOR FENDER - RED
    4-359 (7031)
    LED CLEARANCE LIGHT FOR FENDER - RED
    $9.00
    59
    1/4 X 4 X 14 3/4" 14" TIRE CENTER BRACE
    1-3303FX (7031)
    1/4 X 4 X 14 3/4" 14" TIRE CENTER BRACE
    $20.00
    60
    1/4 X 2 X 16 3/4" BRACER STIFFENER
    1-2967 (7031)
    1/4 X 2 X 16 3/4" BRACER STIFFENER
    $15.00
    61
    END FENDER BRACE 12" FOR LARGE FENDEX FENDER
    1-8011FX (7031)
    END FENDER BRACE 12" FOR LARGE FENDEX FENDER
    $13.00
    62
    TX-4 X 64" SUB RAIL
    1-614RL (7031)
    TX-4 X 64" SUB RAIL
    $29.00
    63
    TX-4 X 4 1/8" SUB RAIL CLIP
    1-628 (7031)
    TX-4 X 4 1/8" SUB RAIL CLIP
    $6.25
    64
    1/4 X 4 X 5" INSIDE CENTER OFFSET SUB RAIL REINFORCING PLATE W/ CLUSTER OF THREE HOLES
    1-3704 (7031)
    1/4 X 4 X 5" INSIDE CENTER OFFSET SUB RAIL REINFORCING PLATE W/ CLUSTER OF THREE HOLES
    $7.05
    65
    1/4 X 2 X 3 15/16" SUB RAIL REINFORCING PLATE W/ CLUSTER OF THREE HOLES
    1-2966 (7031)
    1/4 X 2 X 3 15/16" SUB RAIL REINFORCING PLATE W/ CLUSTER OF THREE HOLES
    $5.00
    66
    CAST EQUALIZER BEAM
    6-309 (7031)
    CAST EQUALIZER BEAM
    $18.00
    70
    2" SHACKLE ASSEMBLY (COMPLETE)
    3-283 (7031)
    2" SHACKLE ASSEMBLY (COMPLETE)
    $26.00
    75
    3 LEAF SPRING COMPLETE
    6-106C (7031)
    3 LEAF SPRING COMPLETE
    $65.00
    76
    3500# CAPACITY 4" DROP AXLE, 85" TRACK - 70" 1/4" SPRING CENTER - LESS HUBS
    2-325P (7031)
    3500# CAPACITY 4" DROP AXLE, 85" TRACK - 70" 1/4" SPRING CENTER - LESS HUBS
    $225.00
    77
    BAG OF LARGE U-BOLTS FOR 2 3/8" TUBE
    8-503A (7031)
    BAG OF LARGE U-BOLTS FOR 2 3/8" TUBE
    $24.00
    78A
    10" X 2 1/4" ELECTRIC BRAKE (DEXTER) LH
    12-205EL (7031)
    10" X 2 1/4" ELECTRIC BRAKE (DEXTER) LH
    $95.00
    78B
    10" X 2 1/4" SURGE BRAKE (DEXTER) LH
    12-304SL (7031)
    10" X 2 1/4" SURGE BRAKE (DEXTER) LH
    $84.00
    79A
    10" X 2 1/4" ELECTRIC BRAKE (DEXTER) RH
    12-206ER (7031)
    10" X 2 1/4" ELECTRIC BRAKE (DEXTER) RH
    $95.00
    79B
    10" X 2 1/4" SURGE BRAKE (DEXTER) RH
    12-305SR (7031)
    10" X 2 1/4" SURGE BRAKE (DEXTER) RH
    $84.00
    80
    4 1/2" BOLT CIRCLE 5 BOLT HUB
    2-216R (CT7541)
    4 1/2" BOLT CIRCLE 5 BOLT HUB
    $84.00
    80A
    10" HUB AND DRUM - COMPLETE WITH BEARING AND GREASE FOR 3500# AXLE
    2-216A (7031)
    10" HUB AND DRUM - COMPLETE WITH BEARING AND GREASE FOR 3500# AXLE
    $99.00
    88
    DUST CAP
    4-408T (7031)
    DUST CAP
    $5.00
    89
    STAINLESS STEEL CENTER CAP 3.195
    HC-200SS (7031)
    STAINLESS STEEL CENTER CAP 3.195
    $12.00
    90
    ST-175/80R-13 CLR RADIAL TIRE MOUNTED ON MOD WHEEL
    5-133MS (7031
    ST-175/80R-13 CLR RADIAL TIRE MOUNTED ON MOD WHEEL
    $179.00
    91
    1/2 - 20 CONE NUT 60 DEGREE TAPER
    4-406 (7031)
    1/2 - 20 CONE NUT 60 DEGREE TAPER
    $1.00

    ALUMINUM DOLLY (SUT-HDKD)
    SUT-HDKD (7031)
    ALUMINUM DOLLY (SUT-HDKD)
    $332.00

    SPARE TIRE CARRIER FOR 13, 14, 15" 5-HOLE WHEEL FOR ALL MODELS, INCLUDES RISER KIT
    5-216SB (7031)
    SPARE TIRE CARRIER FOR 13, 14, 15" 5-HOLE WHEEL FOR ALL MODELS, INCLUDES RISER KIT
    $59.00

    SPARE 13" ALUMINUM WHEEL AND TIRE
    13NSS (7031)
    SPARE 13" ALUMINUM WHEEL AND TIRE
    $195.00

    (4) 13" ALUMINUM WHEELS IN PLACE OF PAINTED
    CT-13NS (7031)
    (4) 13" ALUMINUM WHEELS IN PLACE OF PAINTED
    $379.00

    RAISED WINCH PLATFORM
    CTRWP-UPS (7031)
    RAISED WINCH PLATFORM
    $196.00

    4,000 POUND CAPACITY ELECTRIC WARN WINCH AND BATTERY BOX (NO BATTERY)
    CTRWP-WBNB (7031)
    4,000 POUND CAPACITY ELECTRIC WARN WINCH AND BATTERY BOX (NO BATTERY)
    $835.00

    ALUMINUM BATTERY BOX
    12-404 (7031)
    ALUMINUM BATTERY BOX
    $125.00

    UNIVERSAL FRONT SHIELD, FITS ALL MODELS INCLUDING OLDER MODELS WITH "T" SLOT IN TOP OF RAIL
    CTUFS (7031)
    UNIVERSAL FRONT SHIELD, FITS ALL MODELS INCLUDING OLDER MODELS WITH "T" SLOT IN TOP OF RAIL
    $898.00

    TIRE RACK-INCLUDES TWO DEAD BOLT LOCKS, SPECIFY MODEL WHEN ORDERING
    CTTR (7031)
    TIRE RACK-INCLUDES TWO DEAD BOLT LOCKS, SPECIFY MODEL WHEN ORDERING
    $898.00

    ALUMINUM DIAMOND PLATE STORAGE BOX 32"L X 11"W X 18"D
    1701395 (7031)
    ALUMINUM DIAMOND PLATE STORAGE BOX 32"L X 11"W X 18"D
    $489.00

    TOOL BOX MOUNTING KIT (USED WITH ALUMINUM BOX PART NUMBER: 1701395)
    CTBMK (7031)
    TOOL BOX MOUNTING KIT (USED WITH ALUMINUM BOX PART NUMBER: 1701395)
    $72.00

    TWO CARPETED COMPRESSION PLATES & TWO GRIP LOCK FASTENERS FOR TIRE RACK
    CTTRO (7031)
    TWO CARPETED COMPRESSION PLATES & TWO GRIP LOCK FASTENERS FOR TIRE RACK
    $114.00

    MCGARD TRIPLE NICKEL CHROME PLATED WHEEL LOCKS - SET OF 4
    MCG24130 (7031)
    MCGARD TRIPLE NICKEL CHROME PLATED WHEEL LOCKS - SET OF 4
    $33.00

    MCGARD TRIPLE NICKEL CHROME PLATED WHEEL LOCKS - SET OF 5
    MCG24530 (7031)
    MCGARD TRIPLE NICKEL CHROME PLATED WHEEL LOCKS - SET OF 5
    $74.00

    TWO SPEED MANUAL WINCH WITH HAND BRAKE
    4-208 (7031)
    TWO SPEED MANUAL WINCH WITH HAND BRAKE
    $318.00

    6' RATCHET TIE DOWN WITH SNAP HOOK ON BOTH ENDS
    4-825 (7031)
    6' RATCHET TIE DOWN WITH SNAP HOOK ON BOTH ENDS
    $32.00

    36" AXLE STRAPS WITH 12" CORDURA SLEEVE WITH DEE RINGS
    4-828 (7031)
    36" AXLE STRAPS WITH 12" CORDURA SLEEVE WITH DEE RINGS
    $10.00

    THE CLUB TIRE CLAW
    T491 (7031)
    THE CLUB TIRE CLAW
    $99.99

    WIRELESS WINCH CONTROL
    T79080 (7031)
    WIRELESS WINCH CONTROL
    $236.00
    Loading... Please wait.
    IN ASSOCIATION WITH

    NAVIGATE

    Products
    • Open Car Trailers
    • LED Display Trailers
    • LED Advertising Truck
    • Small Boat Trailers (SUT)
    • Utility Trailers
    • Parts
    • Enclosed Car Trailers
    • Canoe/Kayak Trailers
    • Canoe/Kayak Racks
    • Cataraman Trailers
    • Inflatable Trailers
    • Concession Trailers
    About Dealer Locator Resources
    • Brochures
    • Show Schedule
    • Videos
    Contact Sale Home

    CONTACT TRAILEX

    1 Industrial Park Drive
    Canfield, Ohio 44406

    Phone: 800-282-5042
    Fax: 330-533-9118
    Local: 330-533-6814

    Email: trailex1@aol.com

    FOLLOW US

    ©2021 Trailex, Inc.
    All rights reserved

    Site by PALO Creative®

    Global Message

    Quick View
